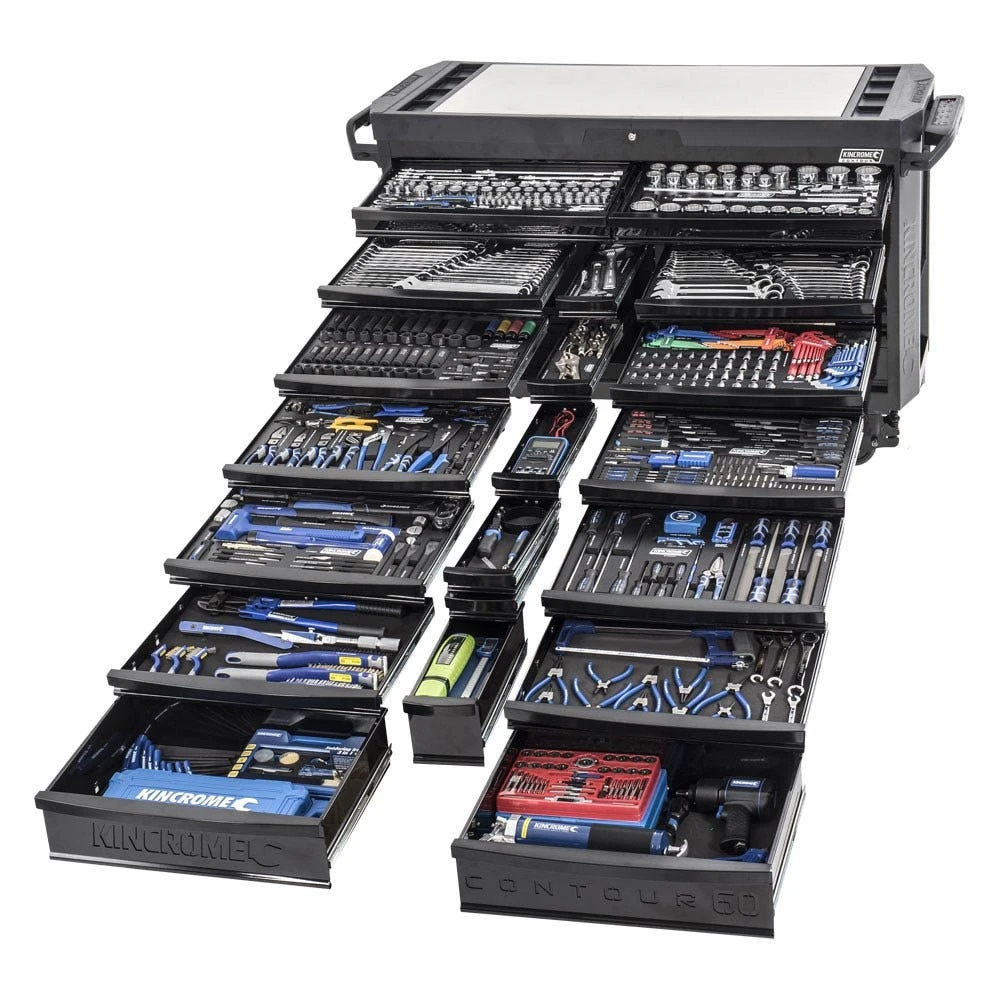

KINCROME CONTOUR 60 Tool Trolley Kit Black Series – 674 Piece K1562MB

CONTOUR®
The Leading Edge In Tool Kits & Storage

The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR® range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty polyurethane castors for easy manoeuvrability.

CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide. CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.

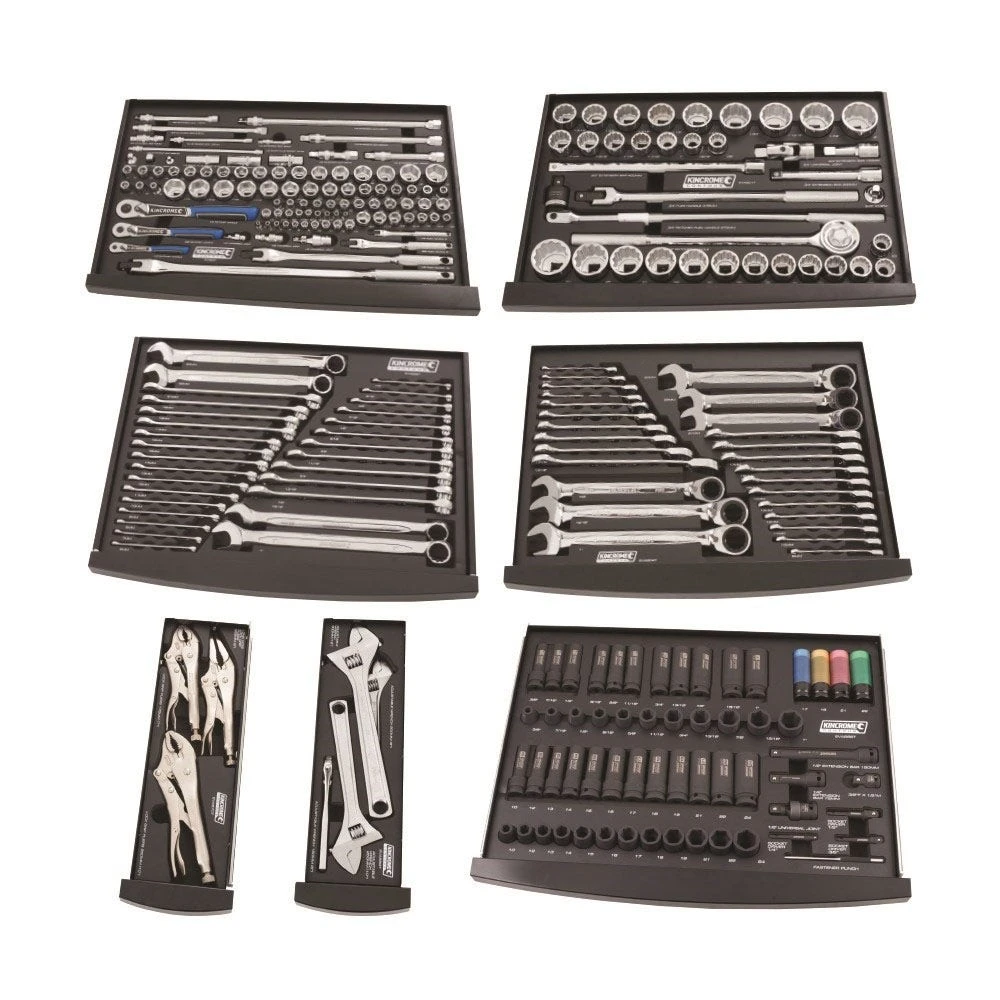

DRAWER 1 – EVA600T – 99 Piece EVA tray Sockets & Accessories LOK-ON™

Metric Sockets LOK-ON™:
• 10 Sockets 1/4” Square Drive:
4, 5, 6, 7, 8, 9, 10, 11, 12, 13mm
• 12 Sockets 3/8” Square Drive:
8, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm
• 20 Sockets 1/2” Square Drive:
8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30, 32mm

Imperial Sockets LOK-ON™:
• 9 Sockets 1/4” Square Drive:
3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2”
• 7 Sockets 3/8” Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4”
• 15 Sockets 1/2” Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/16, 1.1/8, 1.3/16, 1.1/4”

• 27 LOK-ON™ Socket Accessories:
– 1/4” Square Drive
– Reversible Ratchet
– Flexible Handle 150mm (6”)
– Extension Bar 65mm
– Extension Bar 165mm
– Extension Bar 265mm
– Universal Joint (45°)

• 3/8” Square Drive Accessories
– Reversible Ratchet
– Flexible Handle 200mm (8”)
– Extension Bar 70mm
– Extension Bar 175mm
– Extension Bar 275mm
– Universal Joint (45°)
– 3/8” Female x 1/2” Male Adaptor
– 3/8” Female x 1/4” Male Adaptor

• 1/2” Square Drive Accessories
– Reversible Ratchet
– Flexible Handle 375mm (15”)
– Flexible Handle 600mm (24”)
– Flexible Handle 95mm
– Extension Bar 155mm
– Extension Bar 280mm
– Extension Bar 405mm
– Universal Joint (45°)
– 1/2” Female Adaptor x 3/8” Male

• 3 Spark Plug Sockets:
Spark Plug Socket 1/2” Square Drive 14mm (9/16”)
Spark Plug Socket 1/2” Square Drive 16mm (5/8”)
Spark Plug Socket 1/2” Square Drive 21mm (13/16”)

DRAWER 2 – EVA601T 37 Piece 3/4” Drive Sockets and Accessories

Metric Sizes:
• 13 Sockets 3/4” Square Drive:
22, 24, 26, 27, 29, 30, 32, 35, 36, 38, 41, 46, 50mm

Imperial Sizes:
• 16 Sockets 3/4” Square Drive:
7/8, 15/16, 1, 1.1/16, 1.1,8, 1.3/16, 1.1/4, 1.5/16, 1.3/8, 1.7/16, 1.1/2, 1.5/8, 1.3/4, 1.13/16, 1.7/8, 2”

Socket Accessories:
– 3/4” Square Drive Reversible Ratchet
– Ratchet Flex Handle 675mm (27”)
– Flexible Handle 475mm
– Extension Bar 100mm
– Extension Bar 200mm
– Extension Bar 400mm
– Universal Joint 3/4” Square Drive
– Socket Adaptor 3/4” F x 1/2” M

DRAWER 3 – EVA558T 30 Piece EVA tray

Metric Combination Spanners:
• 17 Mirror Polish Combination Spanners:
6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24

Imperial Combination Spanners:
• 13 Mirror Polish Combination Spanners:
1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1”

DRAWER 4 – EVA604T 27 Piece Reverse Gear Spanner EVA Tray

• 14 Reverse Gear Spanners Metric:
8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 13 Reverse Gear Spanners Imperial:
1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16”, 3/4”, 13/16”, 7/8”, 15/16”, 1”

DRAWER 5 – EVA568T 58 Piece LOK-ON™ Impact EVA Tray

• 12 LOK-ON™ Metric Impact Sockets 1/2” Square Drive:
10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 11 LOK-ON™ Imperial Impact Sockets LOK-ON™:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1”

• 12 LOK-ON™ Metric Impact Deep Sockets 1/2” Square Drive:
10, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm

• 11 LOK-ON™ Imperial Impact Deep Sockets 1/2” Square Drive:
3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1”

• 8 Impact Accessories
– 1/4” Socket Driver
– 3/8” Socket Driver
– 1/2” Socket Driver
– 1/2” Universal joint
– 1/2” Extension Bar 75mm
– 1/2” Extension Bar 150mm
– Adaptor 3/8”F x 1/2”M
– Fastener Punch

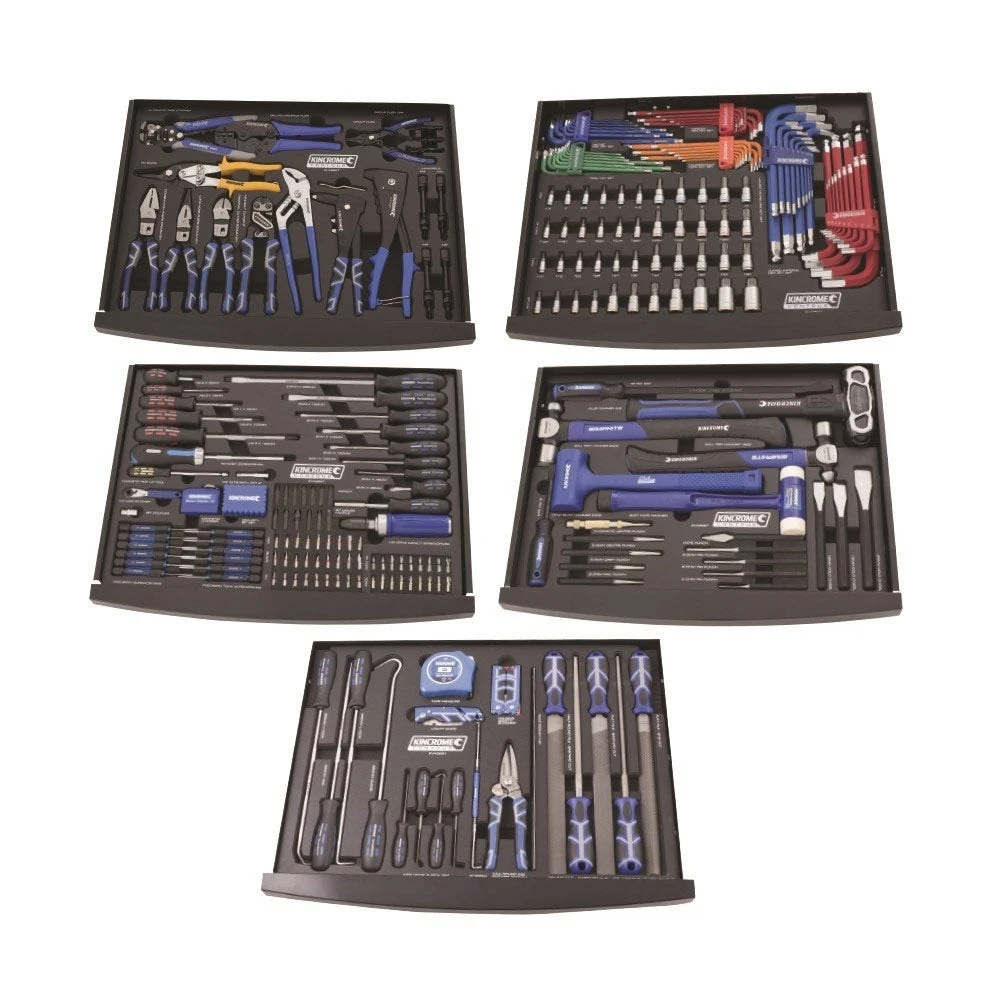

DRAWER 6 – EVA564T – 106 Piece Hex / TORX Keys & Sockets EVA Tray

• Imperial Ball Point Hex Key Set Long Series 9 Piece:
1/16” x 14 x 90mm, 5/64” x 16 x 100mm, 3/32” x 18 x 112mm, 1/8” x 20 x 126mm, 5/32” x 25 x 140mm, 3/16” x 28 x 160mm, 1/4” x 32 x 180mm, 5/16” x 36 x 200mm, 3/8” x 40 x 224mm

• Metric Ball Point Hex Key Set Long Series 9 Piece:
1.5 x 14 x 90mm, 2.0 x 16 x 100mm, 2.5 x 18 x 112mm, 3.0 x 20 x 126mm, 4.0 x 25 x 140mm, 5.0 x 28 x 160mm, 6.0 x 32 x 180mm, 8.0 x 36 x 200mm, 10.0 x 40 x 224mm

• Tamperproof TORX® Hex Key Set Long Series 9 Piece:
T10H x 14 x 90mm, T15H x 16 x 100mm, T20H x 18 x 112mm, T25H x 20 x 126mm, T27H x 25 x 140mm, T30H x 28 x 160mm, T40H x 32x 180mm, T45H x 36 x 200mm, T50H x 40 x 224mm

• TORX® Hex Key Set Long Series 9 Piece:
T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm

• Metric Ball Joint Jumbo Key Wrench 13 Piece:
2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12, 14, 17, 19mm

• Imperial Ball Joint Jumbo Key Wrench 13 Piece:
5/64, 3/32, 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8 & 3/4”

• Metric Hex Socket Set:
1.5, 2, 2.5, 3, 4, 4.5, 5, 6, 8, 10, 12mm

• Tamperproof TORX® Socket Set:
T10H, T15H, T20H, T25H, T30H, T40H, T45H, T50H, T55H, T60H

• TORX® Socket Set:
T10, T15, T20, T25, T27, T30, T40, T45, T50, T55, T60

• Spline Socket Set:
M4, M5, M6, M8, M8, M10, M12, M12, M14, M16, M18

DRAWER 7 – EVA562T – 15 Piece Pliers & Riveters EVA Tray

• X-Force Combination Pliers 200mm (8”)
• X-Force Diagonal Cutting Pliers 200mm (8”)
• X-Force Long Nose Pliers 200mm (8”)
• Multi-Grip Pliers 250mm (10”)
• Mini Bolt Cutter 200mm
• Compact Hand Riveter
• Nut Riveter
• Automatic Wire Stripper
• Deluxe Crimping Wire
• Combination Circlip Pliers Set 5 Piece
• Straight Cut Tin Snips

DRAWER 8 – EVA560T 131 Piece EVA tray 13 Piece TORQUEMASTER® Screwdriver Set

• 8 Screwdrivers – Blade:
3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm

• 5 Screwdrivers – Phillips:
No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm

• Security Bit & Holder Set 33 Piece 1/4” Hex Drive
• Bit holder Driver 6mm Hex Drive
• Impact Screwdriver Set 14 Piece
• 9 Piece Ratcheting Screwdriver
• Magnetiser & Demagnetiser

• 6 Piece Precision TORX® Screwdriver Set:
T5, T6, T7, T8, T9, T10

• 6 Piece Precision Screwdriver Set:
Blade: 1.4mm, 2.0mm, 2.4mm, 3.0mm, Phillips: No.0, No.1

• 9 Piece Screwdriver Bit Set (Phillips)
• 9 Piece Screwdriver Bit Set (Hex)
• 9 Piece Screwdriver Bit Set (Tamperproof TORX®)
• 9 Piece Screwdriver Bit Set (TORX®)
• 9 Piece Screwdriver Bit Set (Blade)
• Bit Holder Coupler 1/4” Drive x 1/4 Hex
• 1/4” Mini Ratchet
• Magnetic Telescopic Pick-up Tool

DRAWER 9 – EVA566T 20 Piece EVA tray

• Ball Pein Hammer 16OZ
• Ball Pein Hammer 24OZ
• Ironkore 4lb Club Hammer
• Dead Blow Hammer 24OZ
• Soft Face Hammer 38mm

• Pry Bar Set 2 Piece:
Extended Bent Pry Bar – 450mm (18”)
Bent Pry Bar – 200mm (8”)

• Punch and Chisel Set 12 Piece:
3 x Cold Chisels – 16mm, 19mm, 25mm
4 x Pin Punches – 2.5mm, 4mm, 5mm, 6.5mm

• 1 x Centre Punch – 5mm
• 1 x Drift Punch – 5mm
• 2 x Nail Punch – 2.5mm, 5mm
• 1 x Cape Punch
• Automatic Centre Punch

DRAWER 10 – EVA565T 19 Piece EVA tray

• 8m Metric Tape Measure
• Stainless Steel Ruler 300mm (12”)

• File Set 5 Piece:
Flat File Bastard Cut, Half Round File Bastard Cut, Flat File 2nd Cut, Square File Bastard Cut, Round File Bastard Cut

• Folding Utility Knife
• Folding Scraper
• Multipurpose Industrial Scissors

• Mini Hook and Pick Set 4 Piece:
AWL: 129mm, Pin Remover: 115mm, L hook: 115mm, V hook: 125mm

• Large Hook and Pick Set 4 Piece:
AWL: 260mm, Pin Remover: 260mm, L hook: 260mm, V hook: 260mm

• Scriber 235mm

DRAWER 11

• Bolt Cutter 450mm (18”)
• 3 Piece Wire Brush Set Large
• 3 Piece Wire Brush Set Small
• 1/2” Deflection Beam Torque Wrench

DRAWER 12

• Hacksaw Heavy Duty
• Metric Flare Nut Spanner Set 5 Piece
• 5 Piece Circlip Plier Set
• 5 Piece Mini Circlip Plier Set

DRAWER 13

• 9 Piece T-Handle Hex Key Set-Metric
• 3in1 Soldering Iron Kit 9 Piece

DRAWER 14

• 40 Piece Tap & Die Set Metric
• 40 Piece Tap & Die Set Imperial
• Smart Grease Gun Pistol/Lever
• 1/2” Air impact Wrench Composite
• Blow Gun 100mm
• Blow Gun 280mm

DRAWER 15 – EVA569T – 4 Piece Adjustable Wrench EVA Tray

• Adjustable Wrench 150mm (6”)
• Adjustable Wrench 200mm (8”)
• Adjustable Wrench 250mm (10”)
• Adjustable Wrench 300mm (12”)

DRAWER 16 – EVA570T – 3 Piece Locking Plier Tray

• Locking Grip Pliers 175mm (7”)
• Locking Grip Pliers 250mm (10”)
• Long Nose Locking Grip Pliers 225mm (9”)

DRAWER 17

• Digital Multimeter

DRAWER 18

• 1/2” Air Ratchet Wrench
• Oil Filter Wrench Medium

DRAWER 19

• SMD Led Inspect Light HI-VIS
• 200mm Digital Vernier
• LED Inspection Mirror

Specifications

• Drawers: 20
• Size: 60″
• Tray Type: EVA
• Tool Trolley Measurements: 1525 x 475 x 975MM
• Castor Size: 125mm x 50mm (5″ x 2″) x2 locking
• Finish: UV Stabilised Powder Coat
• Material: Heavy Gauge Steel
